Fast Summed-Area Table Generation and its Applications

Justin Hensley
UNC Chapel Hill
Thorsten Scheuermann
ATI Research
Greg Coombe
UNC Chapel Hill
Montek Singh
UNC Chapel Hill
Anselmo Lastra
UNC Chapel Hill

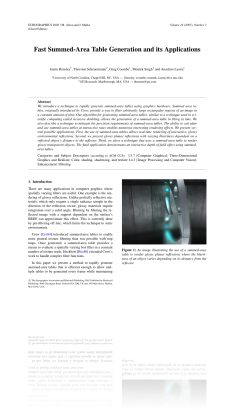

1st page screenshot

Abstract

We introduce a technique to rapidly generate summed-area tables using graphics hardware. Summed area tables, originally introduced by Crow, provide a way to filter arbitrarily large rectangular regions of an image in a constant amount of time. Our algorithm for generating summed-area tables, similar to a technique used in scientific computing called recursive doubling, allows the generation of a summed-area table in O(log n) time.

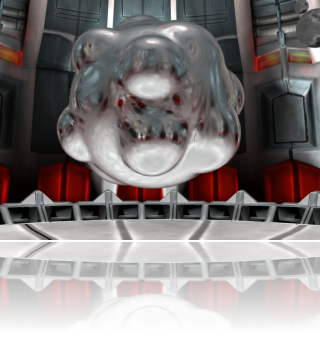

We also describe a technique to mitigate the precision requirements of summed-area tables. The ability to calculate and use summed-area tables at interactive rates enables numerous interesting rendering effects. We present several possible applications. First, the use of summed-area tables allows real-time rendering of interactive, glossy environmental reflections. Second, we present glossy planar reflections with varying blurriness dependent on a reflected object’s distance to the reflector. Third, we show a technique that uses a summed-area table to render glossy transparent objects. The final application demonstrates an interactive depth-of-field effect using summed-area tables.

Citation

Downloads

Download paper (pdf, 684 KB)
Download video (DivX, 22.7 MB)
